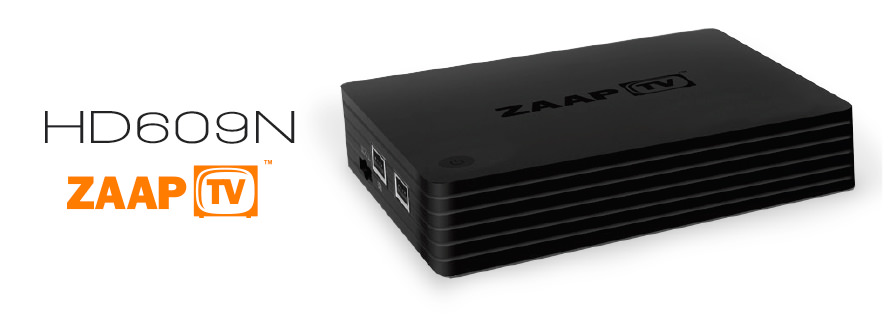

The HD609N by ZaapTV™ IS HERE!

ZaapTV HD509N

Our advanced technology powered by ZaapTV™ OS makes ZaapTV™ HD609N the best ethnic IPTV device in the market.

All TV programming, video-streaming, apps and games were designed with the big screen in mind. Experience the high quality of 1080P/4K videos, movies and live TV in multiple languages.

To get the high-quality Smart TV experience, connect your TV with the ZaapTV™ HD609N device, add high-speed internet (Wi-Fi or Ethernet), and your TV connected experience will start.

Up to Full HD 1080p/4K
Pre-installed Apps like KODI and more
Install thousands of apps through the Appstore
Built in Dual Wireless network adapter
Very fast zapping
Amazing Bluetooth remote control

ZaapTV HD509N

* For optimal performance, the ZAAP HD609N requires a 5MB/second internet connection.

Technical Specifications

Hardware Specifications
CPU AMLogic S905-H Quad Core up to 2.0 GHz
GPU Mali MP-450 Penta core
Memory 1 GB DDR3 1333MHz
Flash 8GB eMMC
WIFI Built-in 2.4/5 GHz WiFi 802.11 B/G/N/AC
Bluetooth 4.0
Power Supply Specifications
Power Supply(Adapter) DC 12V/2A
Power Indicator (LED) Power ON: Blue; Standby: Red
Main Features
Stream support RTSP, RTP, HTTP, UDP, IGMP etc.
DRM Google Widevine, HDCP 2.2, Secure OS 2.0
Video Processing H264, H265 up to 4k@60Hz
Video codecs H.265, H.264 AVC, H.264, MVC, MPEG-1,MPEG-2 SD/HD, MPEG-4 SD/HD, ASP, VC-1/WMV, AVS/AVS+, MJPEG, HEVC HD, UHD
Video containers MKV, WMV, MPG, MPEG, DAT, AVI, MOV, ISO, MP4, RM and JPG
Audio codecs MPEG 2 Audio, AAC, MP3, WMA, RM, FLAC, OGG, MP3, AAC, WMA, RM, FLAC, Ogg, Dolby Digital, Dolby Digital Plus, DTS
Audio Out
Audio Digital-to-Analog conv. 192kHz/24-bit
Digital audio output HDMI
Video Out
Video output signal NTSC and PAL TV system
Analog video output CVBS
Digital video output HDMI
Product Specifications
Length 115mm / 4.52in
Width 109mm / 4.29in
Height 25mm / 0.98in
Operating System
ZaapTV™ OS based on Android 5.1.1
2x USB Socket
1x Audio/Video analog output
1x HDMI 2.0 Socket
1x LAN Ethernet 1000Mbit/s (Gigabit Ethernet)
1x MicroSD card Slot
Built-in WIFI (Adjustable WIFI antenna)
1x 12V DC Input Jack
Power Switch
Remote Receiver
Power LED
Instruction Manual
Ethernet Cable
HDMI Cable
110V/220V Power adaptor with US/EU/UK/AU plug
Bluetooth Remote Control with Batteries
ZaapTV Certifications
